Running an external return without drilling the sump?

[fkshiu]

Is there anyway to run an external return pump without having to drill a hole in your sump?

If not, how do you know how high to have the hole drilled?

thanks

[Dale]

Some thoughts:

No drilling

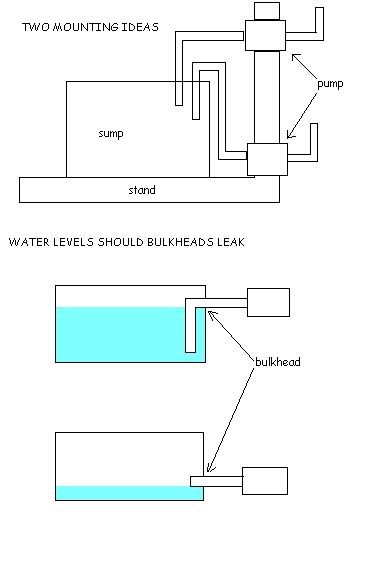

If, for example, you are mounting the external pump to the stand. just use PVC piping, elbows etc... to extend the pump intake down into the sump.

Drilling
Some people plumb their systems as though a leak could never develop so in theory you can drill the sump anywhere you want (within reason) but the closer to the top - the less volume lost should a leak develop between the bulkhead and the glass. If you want to draw water from the bottom of the sump this can be achieved by using PVC fittings on the inside of the sump.


________
RM250

[untamed]

Yes...good suggestions.

The only thing I would add is that you have to factor in how you are going to prime the pump, if you plumb this way. On their own, most pumps won't pull water up and over the side of the sump if there is any air in the line.

I'm sure that someone will chime in here with some experience on how best to do that.

[Quagmire]

Where the pipe comes up to go over the tank,you can always add a T with a cap.Take the cap off and pour water in to prime,then put the cap back on.Similar to an overflow.

[fkshiu]

Cool. Thanks guys.

[tranvictor]

Originally Posted by Quagmire

Where the pipe comes up to go over the tank,you can always add a T with a cap.Take the cap off and pour water in to prime,then put the cap back on.Similar to an overflow.

Will this set up self start incase of a power outtage? Or would you need to re-prime the pump every time?

[Tangman]

Originally Posted by tranvictor

Will this set up self start incase of a power outtage? Or would you need to re-prime the pump every time?

No, it should restart every time without priming, but you should have a check valve on the pump outlet side to prevent back siphoning ( water or air )
