So that means the old tank will be up for grabs once the transfer is complete

Started some plumbing I will be running 2 Waveline DC pumps for returns. Overflow will not be plumbed that low was just doing some measuring for strainers hopefully will be done plumbing by the end of the week.

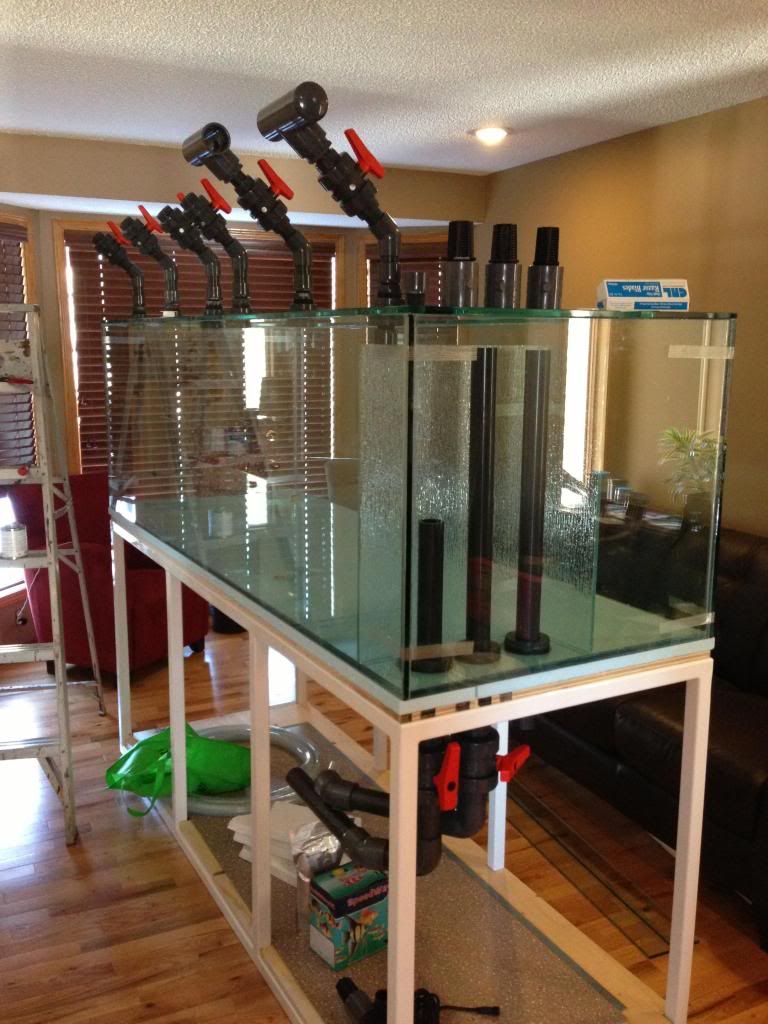

Plumbing Pictures http://i1226.photobucket.com/albums/...k/IMG_0581.jpg

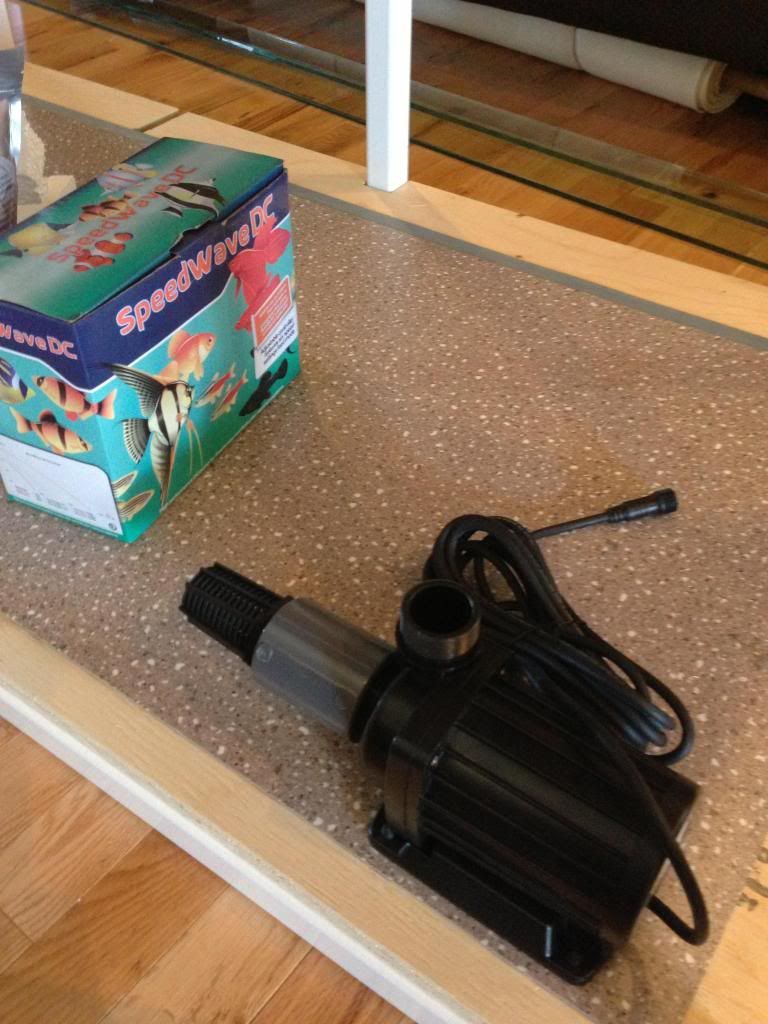

http://i1226.photobucket.com/albums/...k/IMG_0582.jpg

looking great buddy, i bet the misses isnt wanting that to be its final resting spot , although id take it over tv for sure;)

great job!


cheers

denny

yeah your right about that shes freaking about getting it moved hehehe so I have a feeling this transfer will be done very soon.

i was going to ask about the placement lol. looks awesome so far! i recognize the telltale box of blades on your eurobrace. i'm nearly done my complimentary box myself =(

Very nice setup! I didn't know Jay was still building. He does really nice work.

Yeah he is not really building anymore only for close friends and family his work is spot on every time. Cant wait to have this done.

New setup will include

84W x 26H x 30 D
2 Waveline DC Pumps
Internal overflow with 2 1.5" Drains 1 1.5" Emergency
6 3/4" Returns coming off the back with Eductors
2 Large Tunze waveboxes
Existing Sump
Bio Pellets
SWC 250 s2 Skimmer ( to be upgraded in the future to ATI )
2 ATI Powermodules for Lighting
Might add my Ca Reactor SWC Dual chamber

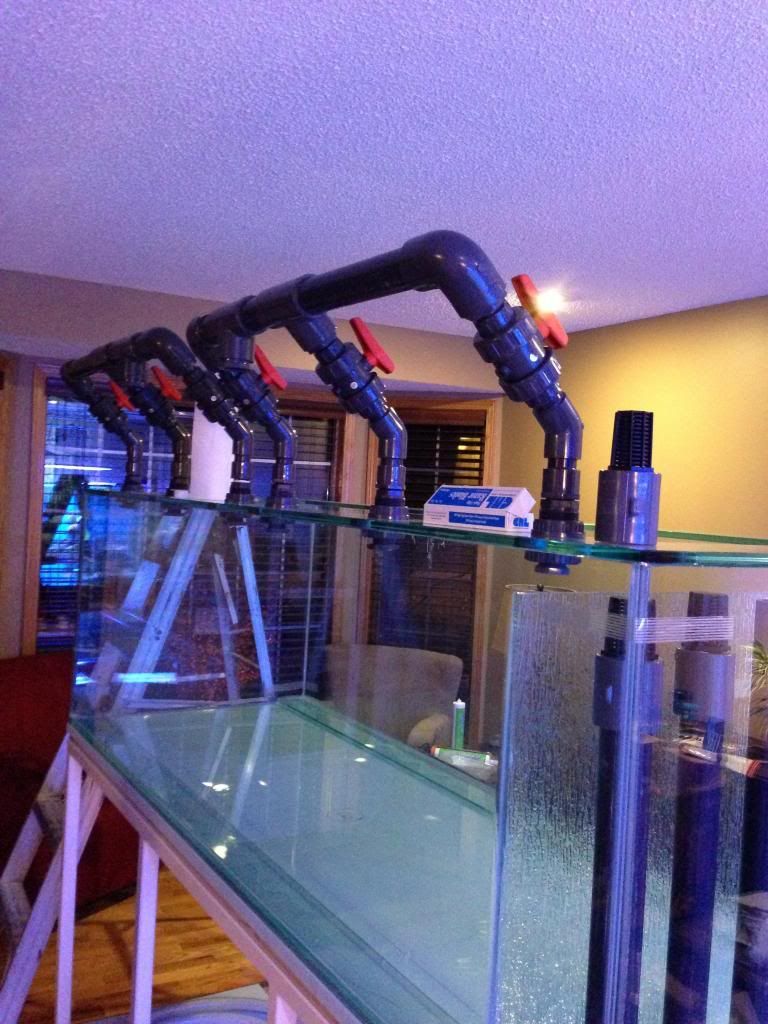

http://i1226.photobucket.com/albums/...IMG_0600-1.jpg

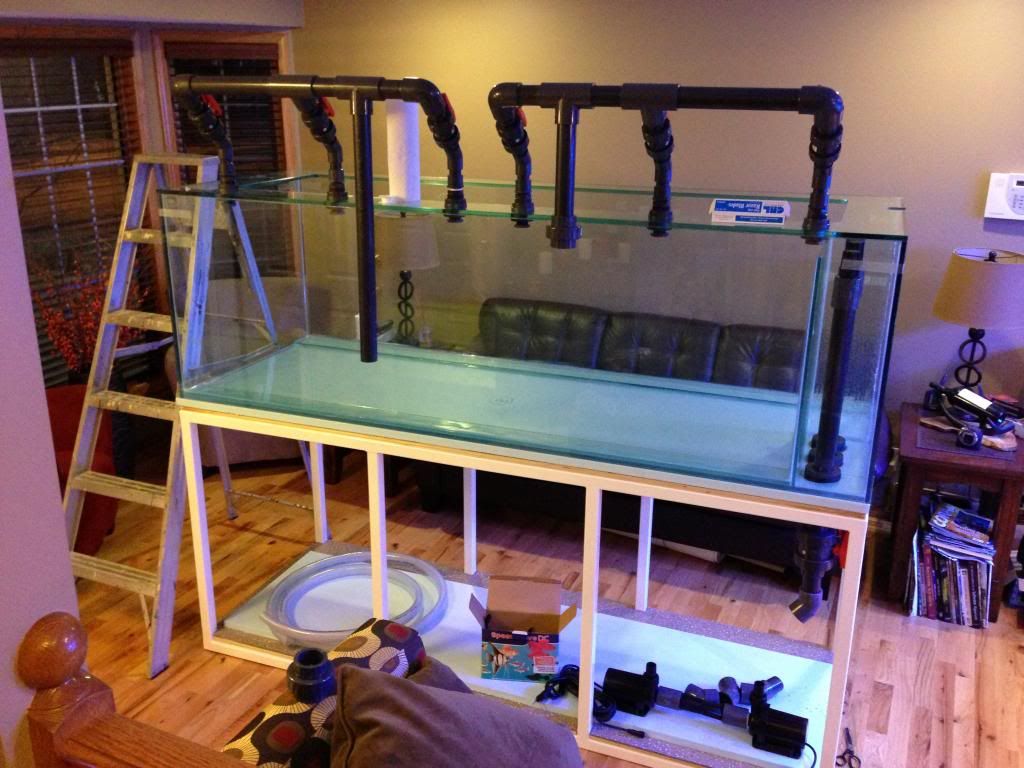

http://i1226.photobucket.com/albums/...3/IMG_0603.jpg
Some plumbing pictures of the weekend I will be putting unions on the downpipes for easy removal and possible cleaning in the future. I will be finnishing the rest of the plumbing this week adding eductors to the return lines and painting the background ( Black ) adding a light rack. The official move of the tank will take place 2 weekends from now. I will be setting up a go pro to capture this enormous move project. Stay Tuned

Looks great but is your overflow completely braced over? It looks like you cannot access it at all?
